JNF Hydraulic Pivot 350 Plus

Architectural Choice is the sole agent for the JNF Hydraulic Pivot 350 Plus

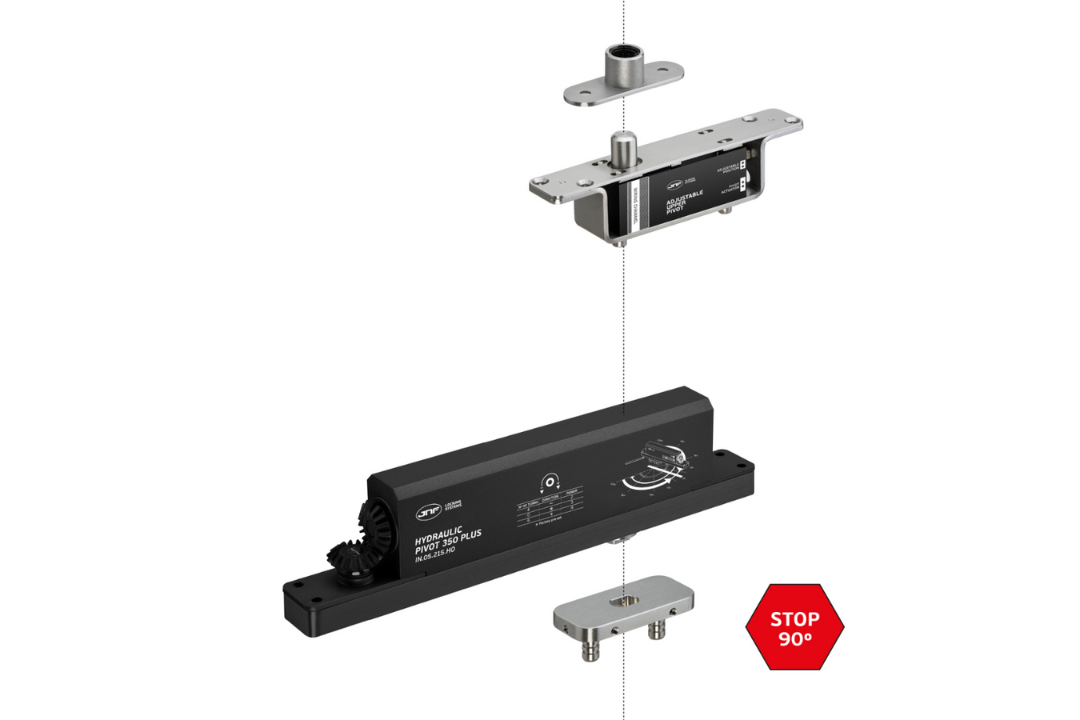

Hydraulic pivoting system for doors up to 350kg. The doors can be single or double-action, with a thickness from 40mm. The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.

JNF Hydraulic Pivot 350 Plus – Precision Meets Performance for Large Doors

The JNF Hydraulic Pivot 350 Plus is a game-changer in door hardware, delivering unmatched durability and seamless functionality for large swing doors up to 350kg. Exclusively distributed by Architectural Choice in Australia, this cutting-edge hydraulic pivot system is designed for premium wooden doors, offering innovative engineering and sleek aesthetics.

Why Choose the JNF Hydraulic Pivot 350 Plus?

Engineered for Heavy-Duty Applications

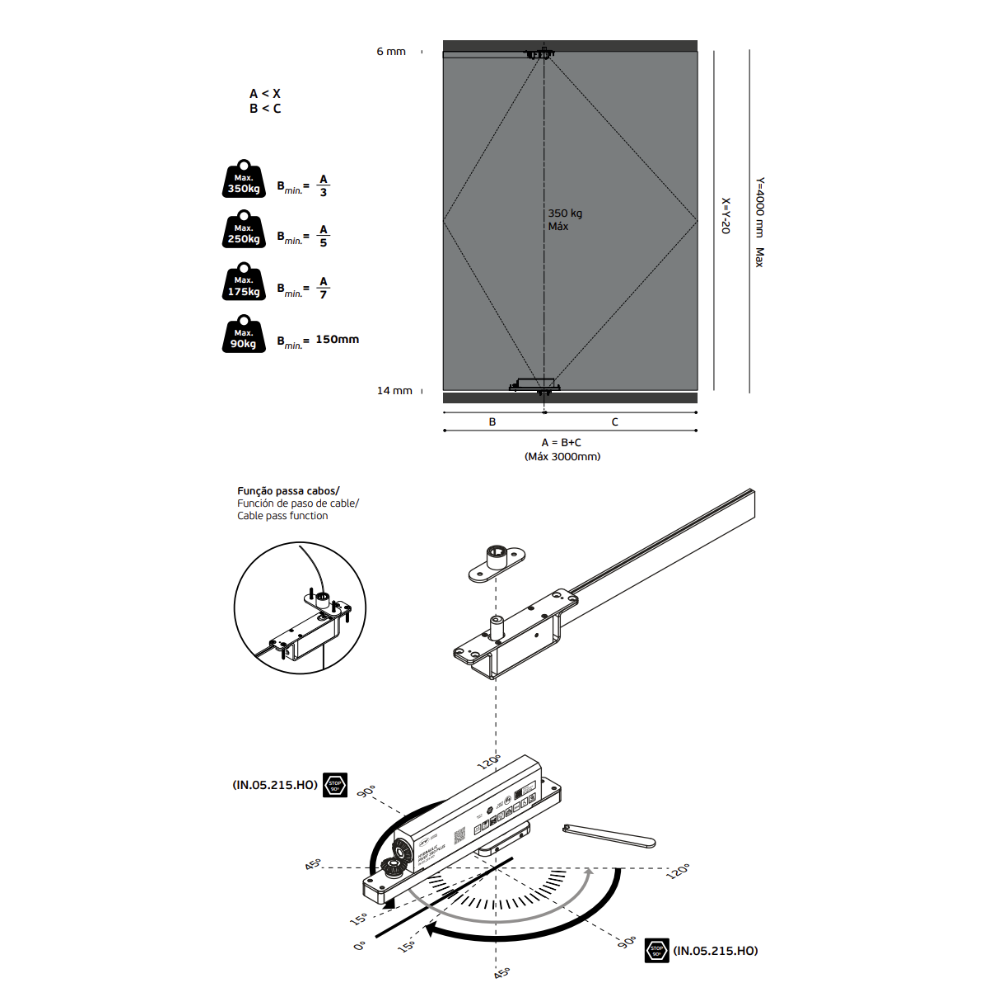

Ideal for doors weighing between 50kg to 350kg, with dimensions of up to 3000mm wide and 4000mm high. The force adjustment feature ensures precision even after installation.

Advanced Hydraulic Technology

The CAM SYSTEM, combined with hydraulics, ensures effortless opening and precise closing control, with dual valves for fine-tuning the initial and final closing speeds. Perfect for doors with locks, where smooth and secure operation is essential.

Discreet, Modern Design

The pivot mechanism is hidden inside the door, leaving only a minimal base visible on the floor. A sleek satin stainless steel finish complements contemporary interiors while ensuring long-lasting performance.

Flexible Installation

Suitable for both single and double-action doors with a thickness of 40mm or more. The unique design allows the pivot point to be adjusted up to 150mm from the door's centre, enabling floor-to-ceiling installations with ease.

Product Highlights

Innovative Pivot System: Combines CAM technology with hydraulics for optimal functionality.

Bidirectional Regulation: Ensures precise door movement and closing.

Built-in Bearings: Enhances stability and durability at the roof or upper frame rotation point.

Effortless Operation: Designed for smooth opening with minimal effort.

Applications

Perfect for luxury residential projects, commercial spaces, and architectural masterpieces where style meets performance.

Elevate your door hardware solutions with the JNF Hydraulic Pivot 350 Plus—crafted to meet the demands of modern architecture.

Order Now to experience unmatched quality and performance exclusively with Architectural Choice in Australia!
