3D Concealed Hinge 175 Series Grey
3D Concealed Hinge 175 Series Grey
SKU:IN.05.062

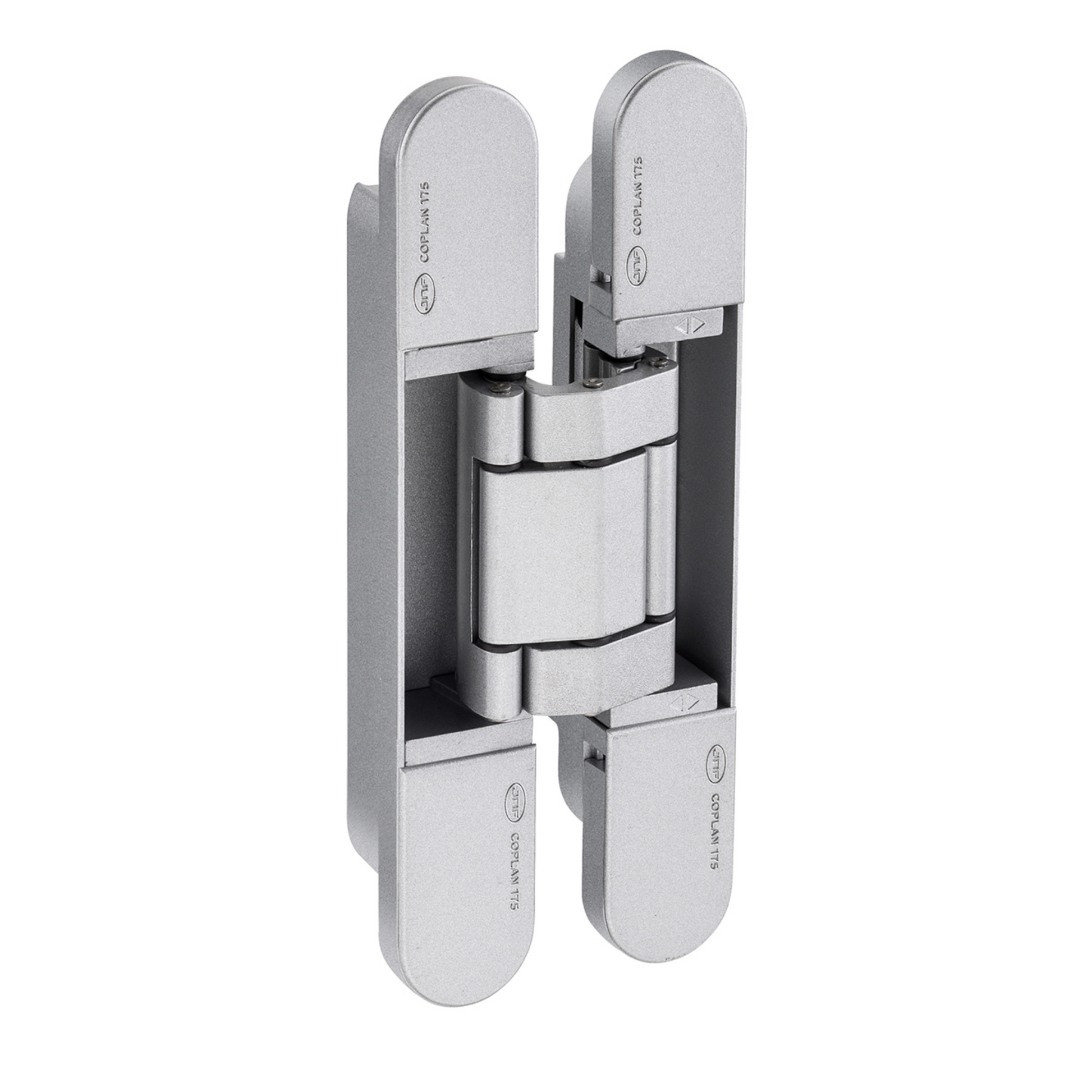

The JNF 3D Adjustable Concealed Hinge 175 Grey is the perfect solution for heavy-duty doors where sleek, frameless architecture is desired. This hinge combines strength and precision with a discreet, modern design, making it an excellent choice for contemporary spaces.
Key Features:

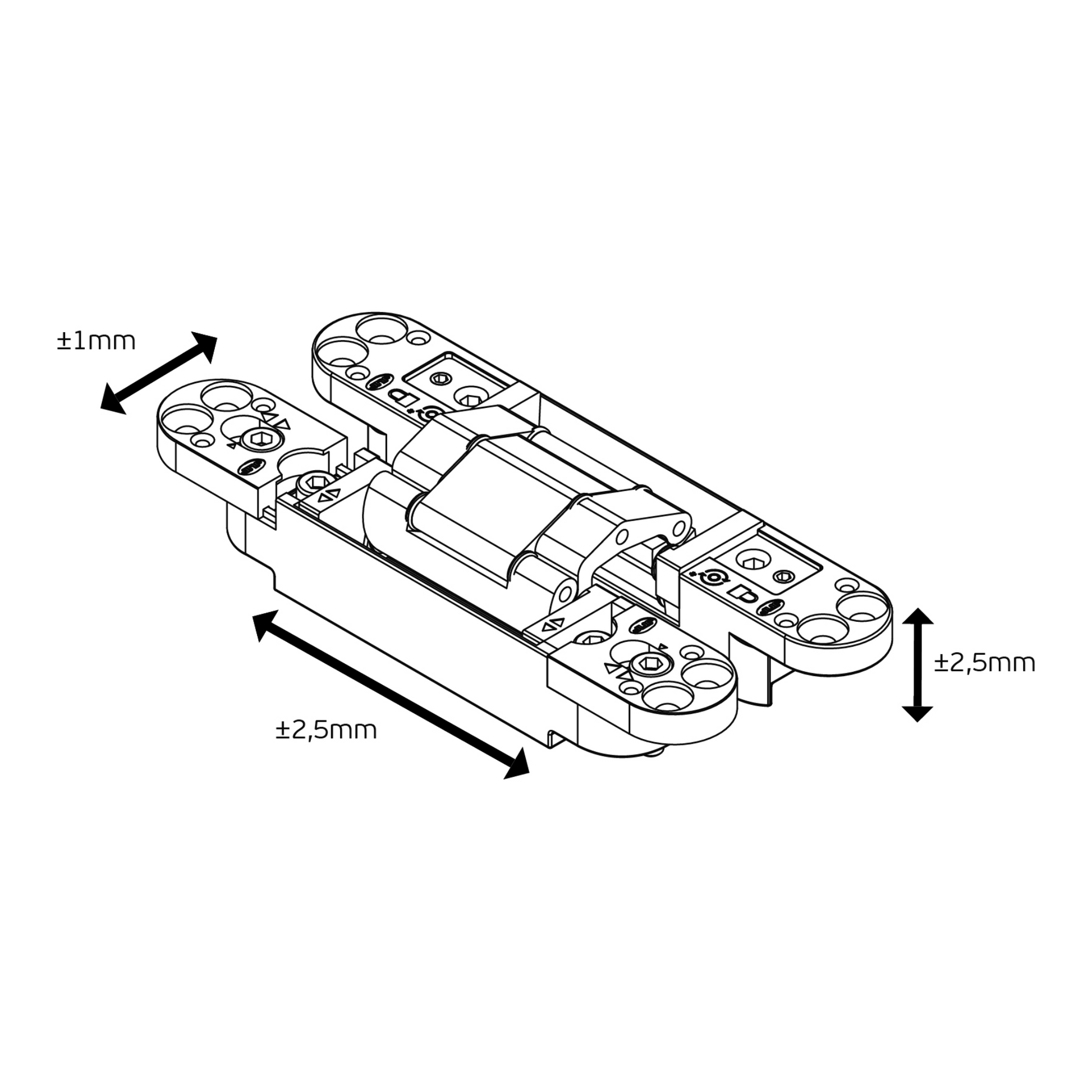

- 3D Adjustability: Allows precise depth, vertical, and horizontal adjustments to ensure perfect door alignment with walls.
- Versatile Application: Suitable for both interior and exterior doors, offering durability and style for any setting.
- High Durability: Fireproof and tested for 200,000 cycles with three hinges installed on the door, guaranteeing reliable, long-term use.
- Reversible Design: Compatible with left or right-hand doors for flexible installation options.
- Optimal Functionality: Features a recommended opening angle of 120 degrees for smooth, effortless operation.
- Quiet Performance: Includes self-lubricating anti-friction washers to ensure silent and consistent movement.
Benefits of the Coplan Grey 3D Adjustable Concealed Hinge
Achieve the clean, modern aesthetic of frameless architecture with this grey 3D concealed hinge. Its invisible design eliminates visible hardware, delivering a seamless look ideal for minimalist interiors and exteriors. The durable construction ensures it can handle heavy-duty doors while maintaining precise alignment and smooth functionality.
For tooling options specific to this hinge, explore [HERE].
Upgrade your door hardware with the JNF 3D Adjustable Concealed Hinge 175 Grey, where performance and elegance meet to redefine your architectural vision.
What's Included:
1 x 175 Series Grey Hinge
4 x Covers
8 x Screws - DIN 7997 - Ø5x30mm
1 x Allen key - 3mm
1 x Allen key - 4mm
